COUPLINGS

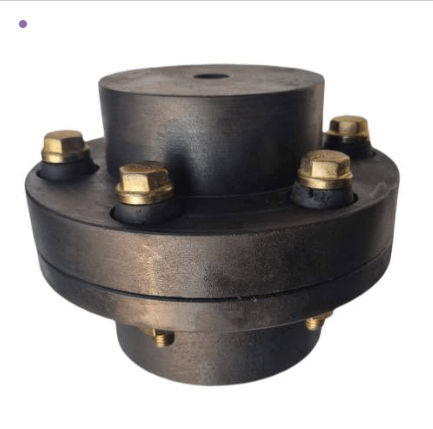

Pin Bush Coupling
- Function: Uses steel bolts and rubber bushes to transmit torque and absorb shocks.
- Temperature Range: −20°C to +250°C
- Power Range: 0.80 kW to 240 kW @ 100 rpm
- Max Angular Misalignment: ≤ 0.67°
- Best For: Pumps, Blowers, Line Shafts, Wire Mills, Cement Plants, Rolling Mills, Ball and Tube mills

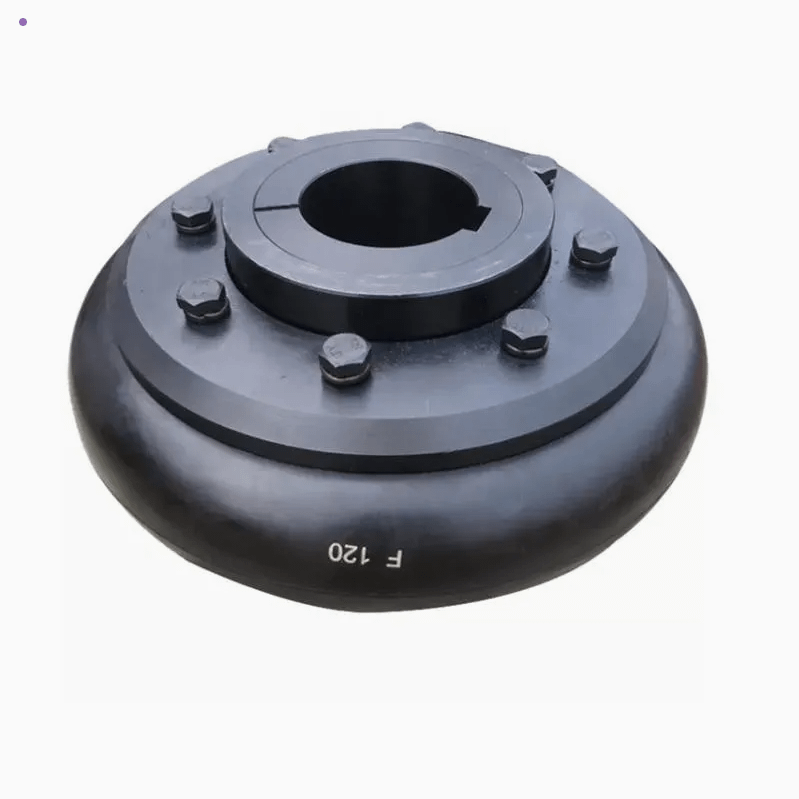

Tyre Coupling
- Function: Torsionally elastic with taper lock fixing; uses rubber elements.
- Temperature Range:
- Natural Rubber: −50°C to +50°C
- Neoprene Rubber: −15°C to +70°C
- Power Range: 0.2 kW to 132 kW @ 100 rpm
- Max Angular Misalignment: ≤ 4°
- Best For: Centrifugal Pump Application for – Oil & Gas, Agriculture, Mining & Metallurgy, Nuclear Plants

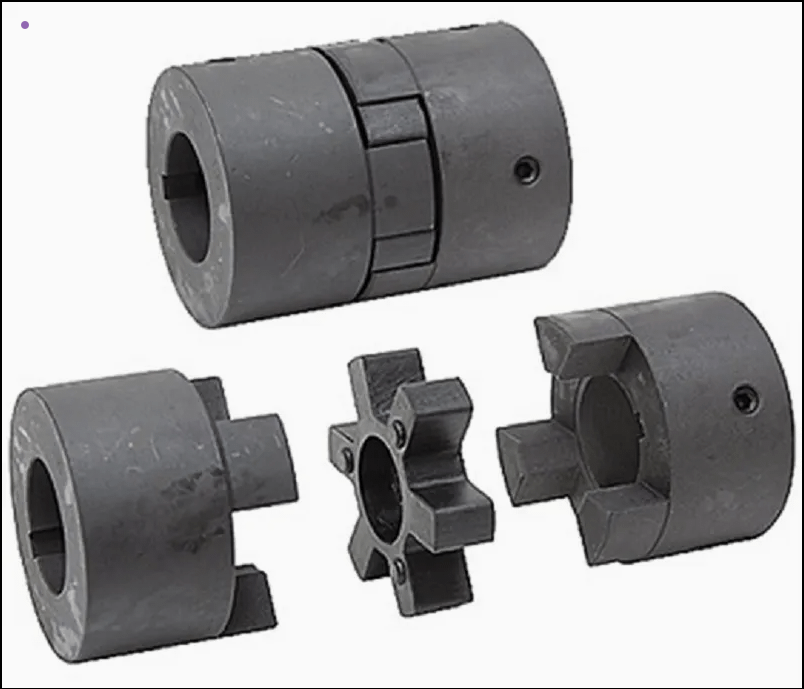

Jaw Coupling
- Function: Dampens small amplitude vibrations and absorbs shock loads; customizable spacer length.
- Temperature Range: −40°C to +100°C
- Power Range: 0.2 kW to 22.4 kW @ 100 rpm
- Max Angular Misalignment: ≤ 1°
- Best For: Conveyors, Elevators, Packaging Machinery, Food processing plants, Compressors, Blowers, Paper mills, General machine tools

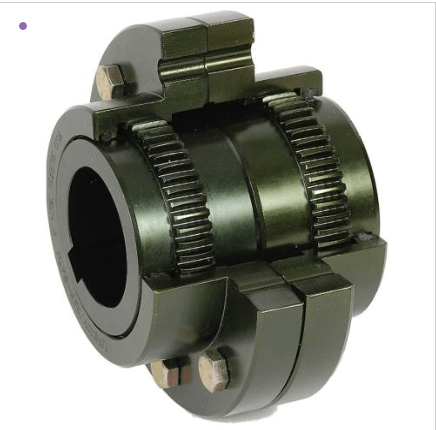

Gear Coupling
- Function: Flexible mechanical coupling for compensation of angular, parallel, and axial misalignments. Sleeves with Gasket are joined with High tensile bolts
- Temperature Range: −20°C to +120°C
- Power Range: 11.5 kW to 11,500 kW @ 100 rpm
- Max Angular Misalignment: ≤ 1.5°
- Best For: Metal rolling mills, Cement plants, Paper mills, Cranes, Hoist, Rubber and Plastic Industries, Heavy duty applications

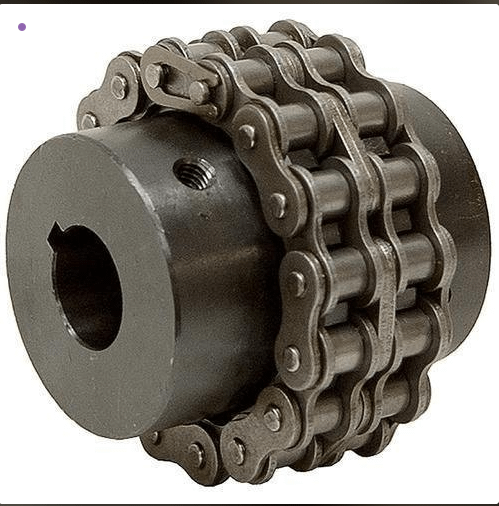

Roller Chain Coupling
- Function: Torque transmission via sprocket teeth and roller chain pins.
- Temperature Range: −20°C to +120°C
- Power Range: 0.75 kW to 330 kW @ 100 rpm
- Max Angular Misalignment: ≤ 2°
- Best For: Multi-car parking, Material Handling, Agriculture, Steel, Mining, Printing and paper industries
